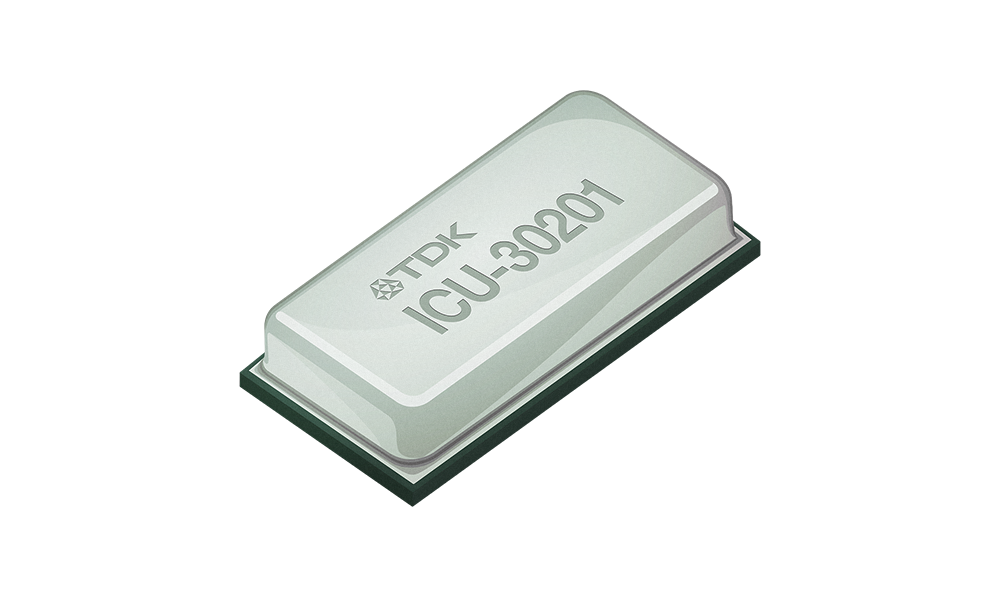

ICU-30201
The ICU-30201 is a high-performance ultrasonic Time-of-Flight sensor that is ideal for measuring the range of objects between 30cm and 9.5m, and offers a customizable field-of-view of up to 180º. It has a sample rate of 75 samples per second at 2 meters, and 18 samples per second at 9 meters. It comes in a 5.17 × 2.68 × 0.9 mm LGA package, and includes an integrated DSP for signal processing.
Features
- Operating Range: 30cm to 9.5m
- Customizable field of view up to 180°
- Ideal for ultra-long range applications
- Ultra-low power consumption extends battery life
- Integrated high performance DSP runs ultrasonic firmware freeing up system micro-controller resources
- High flexibility – large embedded program/data memory
- Works in any lighting condition and can detect transparent surfaces
- Available in modules as well
Product details
Product key details
| Operation | ||||
Pulse-Echo | - | Pulse-Echo | - | - |
| Package Size | ||||
0.90 x 5.17 x 2.68 | 1.26 x 3.50 x 3.50 | |||
| Range | ||||
Up to 5 | - | - | - | - |
| Voltage | ||||
- | - | - | - | - |
| Current Consumption | ||||
22.00 | - | 26.00 | - | - |
| Interface | ||||
SPI 13 MHZ | - | SPI 13 MHZ | SPI 13 MHZ | - |
Development hardware

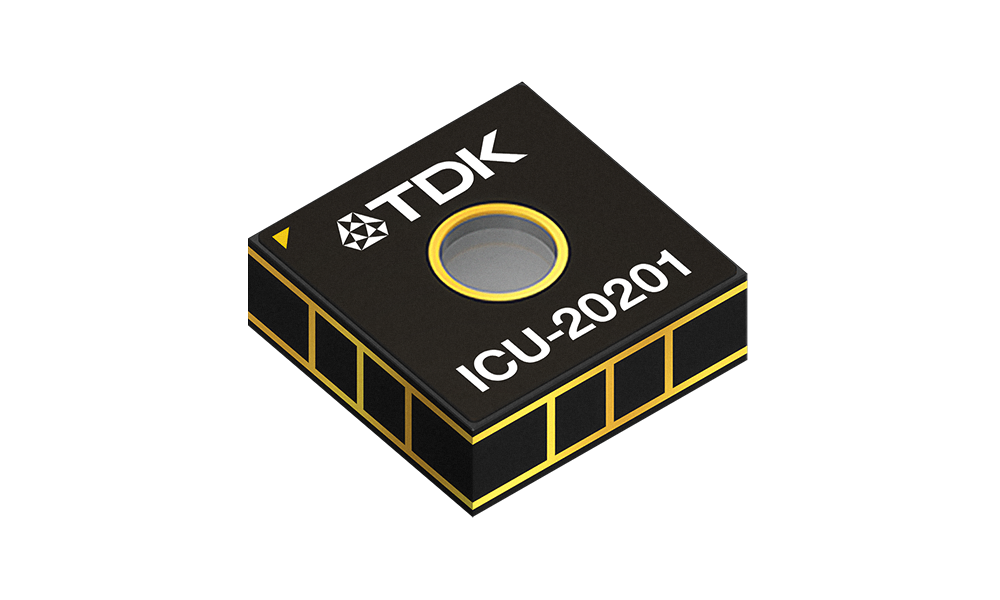

ICU-20201
The ICU-20201 is a high-performance ultrasonic Time-of-Flight sensor that is ideal for measuring the range of objects between 20cm and 5m, and offers a customizable field-of-view of up to 180º. It has a sample rate of 150 samples per second at 1 meter, and 32 samples per second at 5 meters. It comes in a 3.5 × 3.5 × 1.26 mm LGA package, and includes an integrated DSP for signal processing.

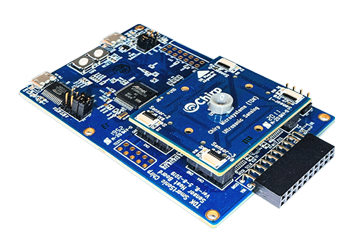

DK-CH201
Comprehensive development platform for CH201, with the ability to connect up to four additional CH201 modules.1212
EV_MOD_CH201-00-01
Ultrasonic ToF 45° FoV sensor module for rapid prototyping and integration into product enclosures
