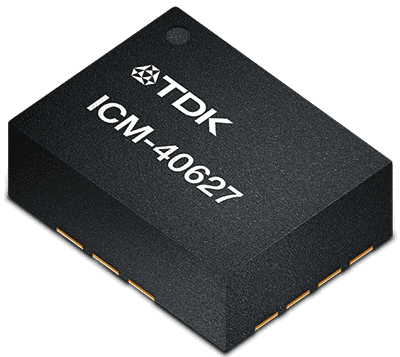

ICM-40627
High-Performance 6-Axis MotionTracking® IMU with AirMotion Library
The ICM-40627 6-axis IMU with Air Motion Library is a highly precise, ultra-low-power solution dedicated to motion-control applications such as smart TV remotes, air mouse, presentation pointers, and smart sketching.
Available variants
Product Features and Benefits
- ICM-40627
- Low-Noise mode 6-axis current consumption of 0.65 mA
- User-programmable digital filters for gyro, accel, and temp sensor
- APEX Motion Functions: Pedometer, Tilt Detection, Tap Detection, Wake on Motion, Raise to Wake/Sleep, Significant Motion Detection
- Host interface: 12.5 MHz I3C℠, 1 MHz I²C, 24 MHz SPI
- Air Motion Library
- 6-axis software running on remote
- InAir relative pointing
- Target CPU: ARM Cortex M0, M3, M4
- Air Pointing: Mouse pointing, calibration, and roll compensation
- Gestures: Swipe and Roll gestures
Target market & applications
- Smart TV Remotes
- Presentation Pointers
- Air Mouse
- Smart Pencil
- Pointing Devices
Product key details
A |
|---|
| Operation |
- |
| Package Size |
0.91 x 2.50 x 3.00 |
