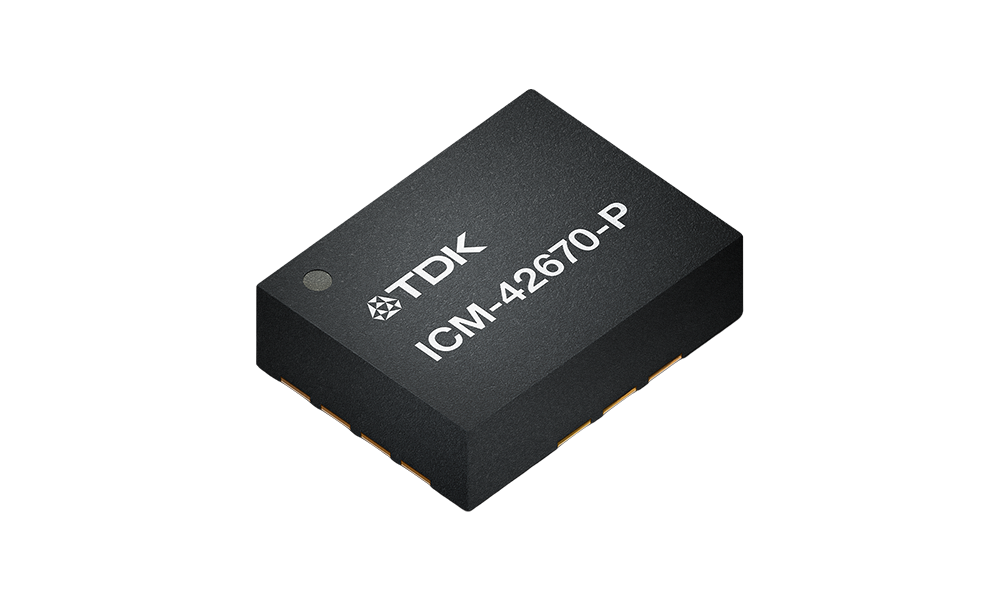

ICM-42670-P
Ultra‑low power 6‑Axis IMU targeted at Consumer and IoT applications which require longer battery life. It has the industry’s lowest power consumption for both 6‑axis and accelerometer only operating modes.
Available variants
Features
Wake on Motion, Freefall Detection, Low-G detection, Pedometer, Tilt Detection, Significant Motion Detection, Independent FIFO ODR
Product Features and Benefits
- Low-Noise mode 6-axis current consumption of 0.55 mA
- Sleep Mode Current Consumption: 3.5 μA
- Accelerometer LP current of 4.4 uA (@1.56 Hz)
- User-programmable digital filters for gyro, accel, and temp sensor
- APEX Motion Functions: Pedometer, Tilt Detection, Low-g Detection, Freefall Detection, Wake on Motion, Significant Motion Detection
- Host interface: 12.5 MHz I3C℠, 1 MHz I²C, 24 MHz SPI
Target market & applications
Wearables, TWS, Gaming, IoT
Key attribute
Cost-Optimal Lowest power IMU with advanced motion features
