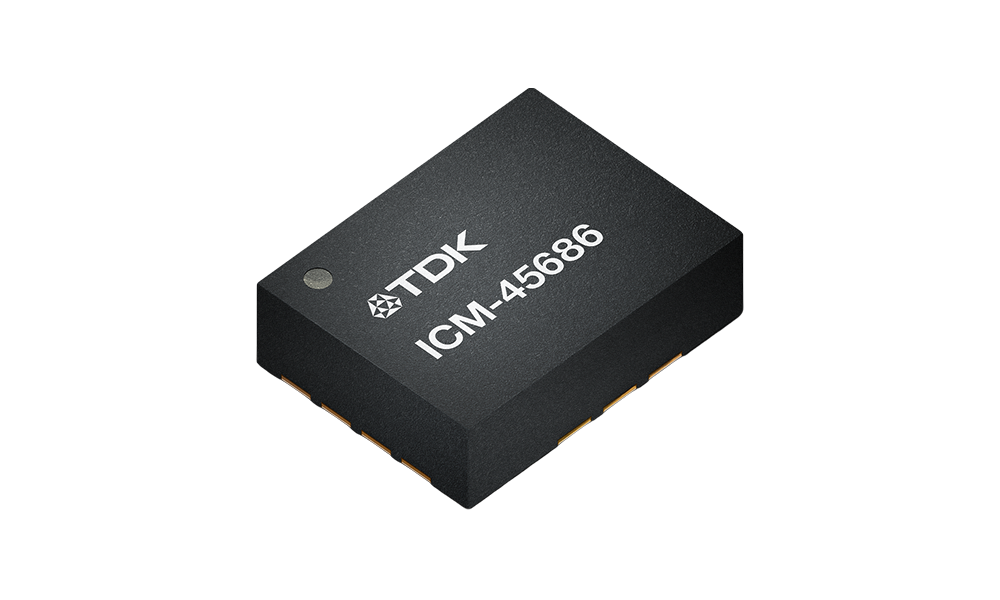

ICM-45686
Available variants
Features
Pedometer, Tilt Detection, Single/Double Tap Detection, Raise – Wake, Wake on Motion, Free-Fall Detection, Significant Motion Detection, Low-G Detection, High-G Detection
Product Features and Benefits
- Balanced Gyroscope Architecture
- 6-axis current: 0.42 mA (Low Noise mode)
- 6-axis current: 0.22 mA (Low Power Mode)
- Gyroscope Noise: 3.8 mdps/rtHz
- Accelerometer Noise: 70 μg/rtHz
- On-chip APEX Motion Functions: Pedometer, Tilt Detection, Single/Double Tap Detection, Raise to Wake, Wake on Motion, Free-Fall Detection, Significant Motion Detection, Low-G Detection, High-G Detection
- FIFO Data Rate (FDR) for system power savings
- Gyro Full-scale range: Up to ±4000 dps
- Accelerometer Full-scale range: Up to ±32g
- Temperature Stability: Gyro ±0.005 º/s/ºC Accel: ±0.15 mg/ºC
- FIFO Data Rate (FDR) for system power savings
- Dual Interface: UI+OIS or UI+I²C Master
- External clock input
Target market & applications
Hearables (TWS) and Wearables, Virtual Reality, Augmented Reality Glasses, High-Accuracy Robotics, Gaming Controllers, Drones, Flight Controllers
Key attribute
Ultra high‑performance 6‑axis MEMS motion sensor family with the world’s first BalancedGyro™ technology and lowest power consumption.
Product details
Compare sensors
Product details

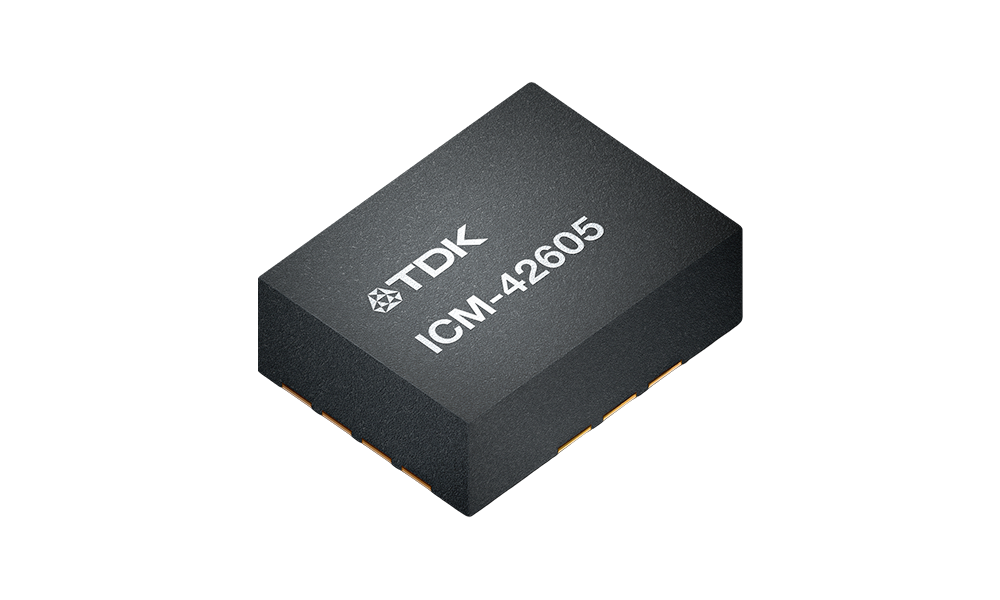

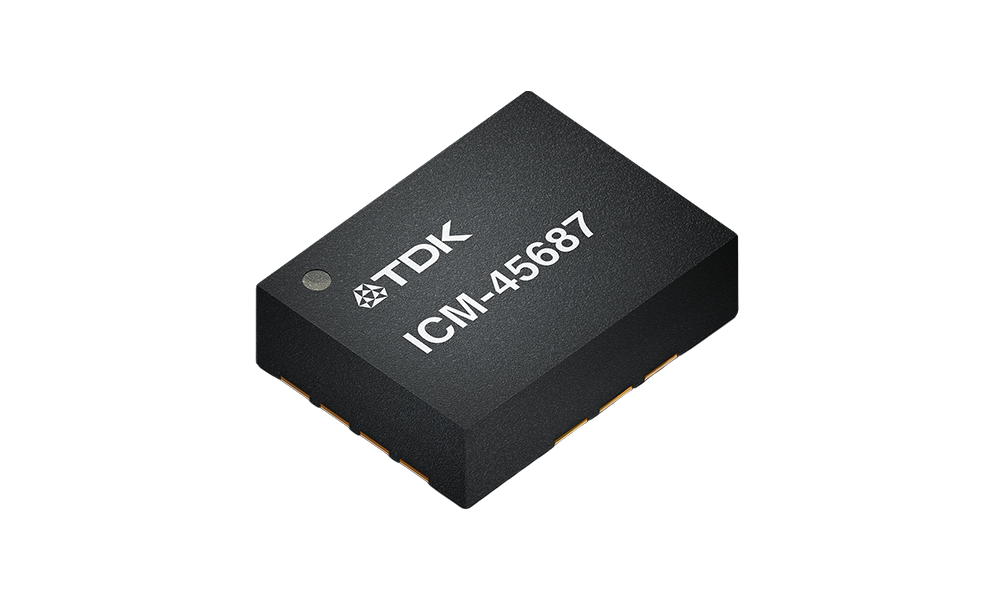

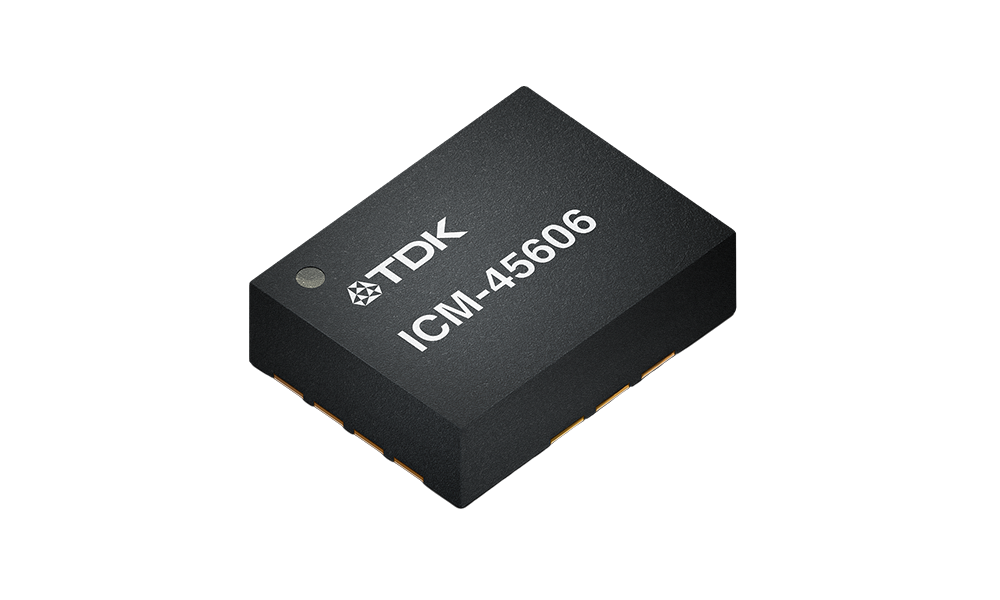

| ICM-45686Shop Now | ICM-45606Shop Now | ICM-45605Shop Now | ICM-42605Shop Now | ICM-45687Shop Now |
|---|---|---|---|---|
| Key attribute | ||||
Ultra high‑performance 6‑axis MEMS motion sensor family with the world’s first BalancedGyro™ technology and lowest power consumption. | - | Ultra high‑performance 6‑axis MEMS motion sensor family with the world’s first BalancedGyro™ technology and lowest power consumption | Low Power 6-axis IMU with high performance and advanced motion features and events | - |
| Target market & applications | ||||
Hearables (TWS) and Wearables, Virtual Reality, Augmented Reality Glasses, High-Accuracy Robotics, Gaming Controllers, Drones, Flight Controllers |
|
| Mobile Devices, Tablets, Cameras, IoT | - |
| Axes | ||||
6 | 6 | 6 | 6 | 6 |
Gaming
Health & Fitness
Development hardware
ICM-45605
The ICM-45605 is an ultra high‑performance 6‑axis MEMS motion sensor family with the world’s first BalancedGyro™ technology and lowest power consumption. The sensor combines a 3‑axis gyroscope and a 3‑axis accelerometer in a compact 2.5 × 3 × 0.81 mm package.
