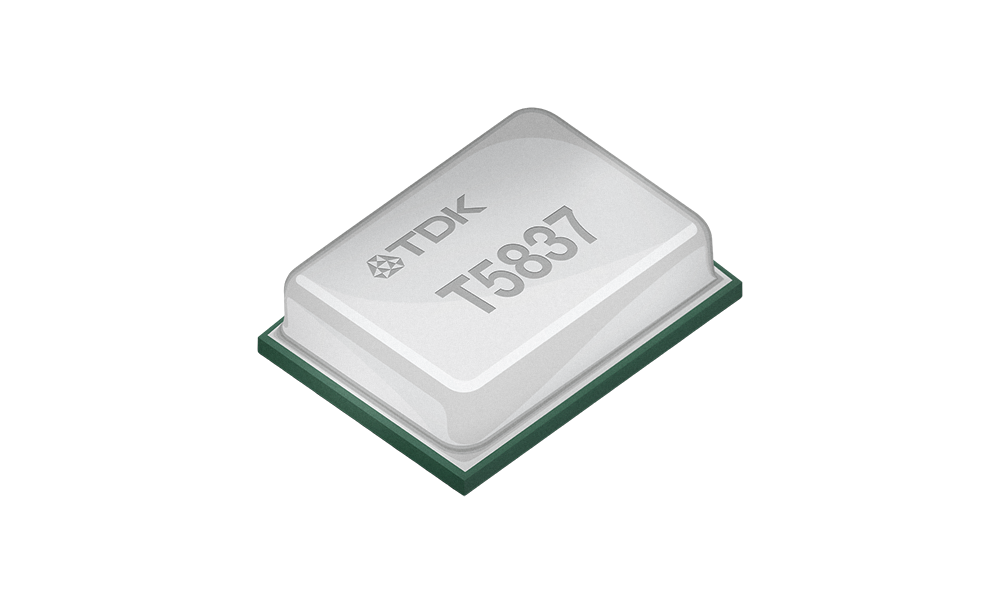

T5837
Bottom Port PDM Digital Output Multi‑Mode Microphone
The T5837 is a low noise, high AOP digital Pulse Density Modulation (PDM) microphone using a fifth-order Σ‑Δ modulator.
Features
- Industry standard High Quality Mode sensitivity of -37 dBFS and Low-Power Mode sensitivity of -21 dBFS
- High SNR and AOP in all operational modes
- Low power consumption in all modes; ~50 – 70% lower than competitors
Product details
Product key details
| Operation | |
- | - |
| Package Size | |
0.98 x 3.50 x 2.65 | |
| Output Type | |
PDM | - |
| Port Location | |
bottom | - |
| Snr | |
68.00 | - |
| Aop | |
133.00 | - |
| Sensitivity (1 KHz, 94 DB SPL) | |
- | - |
| Sensitivity DB FS ±1 DB | |
-37.00 | - |
| Lf Cutoff | |
28 | - |
| Status | |
production | production |
Mobile Devices & Computers
Deliver devices that wow with clear pictures, instant reckoning and wake on voice or movement
Development hardware

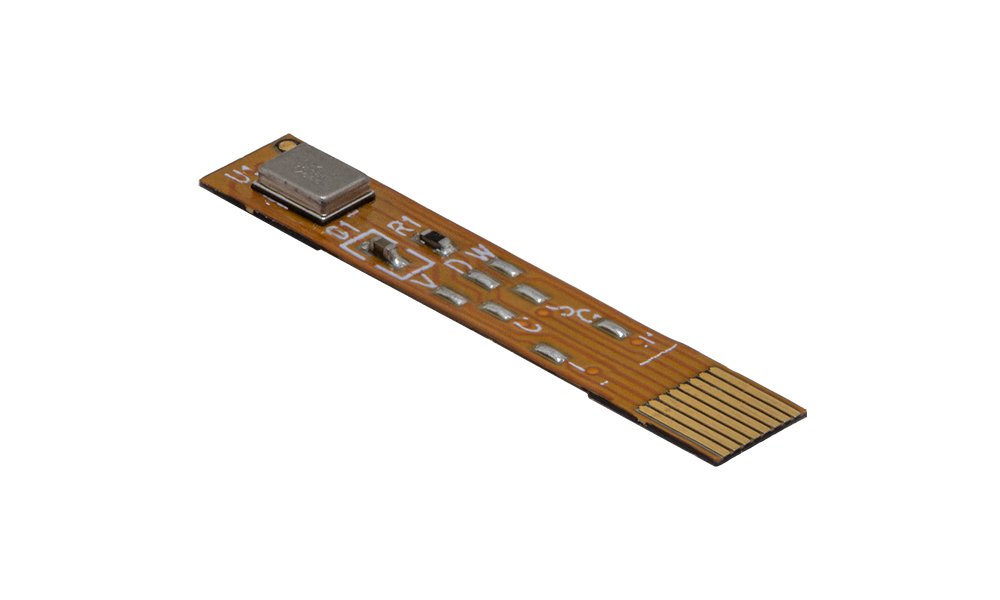

EV_T5837-FX2
