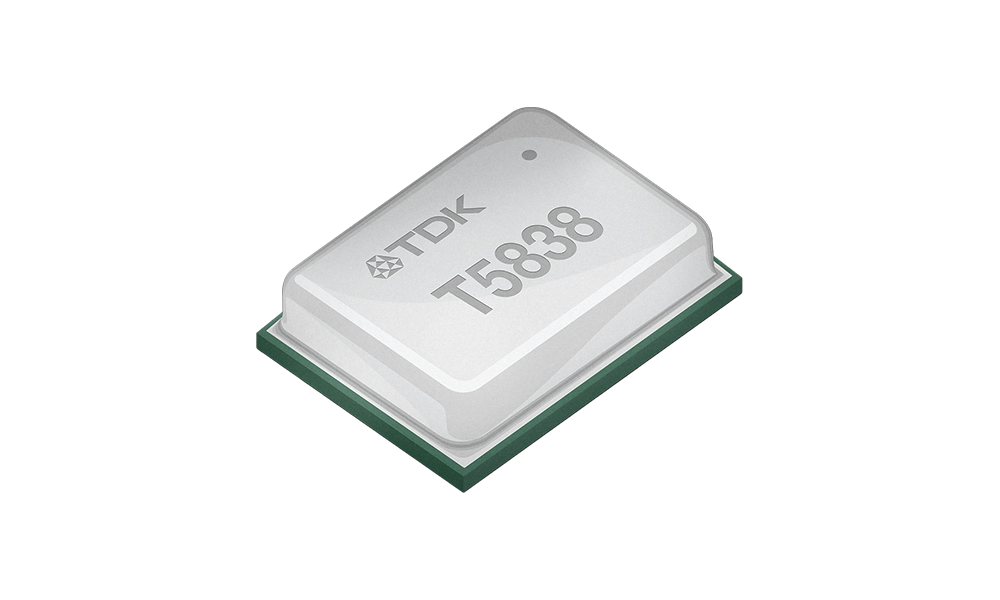

T5838
The T5838 is a low noise, high AOP digital Pulse Density Modulation (PDM) microphone using a fifth-order Σ‑Δ modulator. It also features Acoustic Activity Detect (AAD), a new ultra-low power edge processing feature consuming as low as 20 µA.
Features
- Industry standard High Quality Mode sensitivity of -37 dBFS and Low-Power Mode sensitivity of -21 dBFS
- Low power consumption in all modes; ~50 – 70% lower than competitors
- High SNR and AOP in all operational modes
- Acoustic Activity Detect w/ programmable thresholds & filters with power consumption as low as 20 uA
Target market & applications
Smartphones, Smart Speakers, Headsets, TV Remotes, Smart TV, Set-top Box, Wearables
Key attribute
Ultra-Low Power, High SNR, Multi-Mode PDM Microphone with AAD
Product details
Product key details
| Operation | |||
- | - | - | - |
| Package Size | |||
0.98 x 3.50 x 2.65 | 0.98 x 3.50 x 2.65 | 0.98 x 3.50 x 2.65 | |
| Output Type | |||
PDM | - | - | - |
| Port Location | |||
bottom | - | bottom | bottom |
| Snr | |||
68.00 | - | 63.00 | 65.00 |
| Aop | |||
133.00 | - | 138.00 | 120.00 |
| Sensitivity (1 KHz, 94 DB SPL) | |||
- | - | - | - |
| Sensitivity DB FS ±1 DB | |||
-41.00 | - | -43.00 | -26.00 |
| Lf Cutoff | |||
28 | - | 35 | 60 |
| Status | |||
production | production | production | production |
Compare sensors
Product details

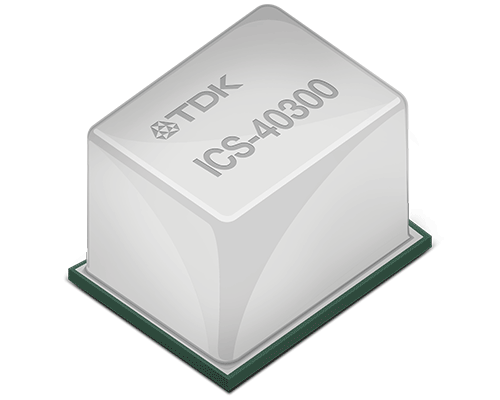

| T5838Shop Now | ICS-43434Buy now | ICS-40300Buy now | EV_T5837-FX2Shop Now |
|---|---|---|---|
| Key attribute | |||
Ultra-Low Power, High SNR, Multi-Mode PDM Microphone with AAD | Low-Noise Multi-Mode Microphone with 24-bit I²S Digital Output | Extended Low Frequency Response Analog Microphone | - |
| Target market & applications | |||
Smartphones, Smart Speakers, Headsets, TV Remotes, Smart TV, Set-top Box, Wearables | - | Noise-Cancelling Headsets, Teleconferencing Systems, Studio Microphones, Security and Surveillance, Photoacoustic Gas Sensing | - |
| Axes | |||
- | - | - | - |
Mobile Devices & Computers
Development hardware

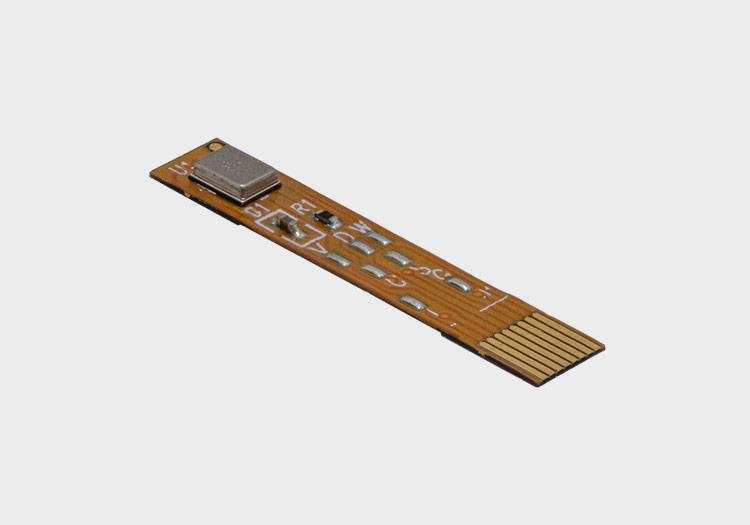

EV_T5838-FX2
Flexible PCB Evaluation Module for T5838
EV_ICS-40638-FX
Note: The ICS-40638 and ICS-40638 EVB are marked as EOL and are not recommended for new designs.
EV_ICS-40638-FX – Evaluation Board
Simple evaluation board which allows for quick evaluation of the ICS-40638 analog MEMS microphone. The small size and low profile of the flexible PCB enables direct placement of the microphone into a prototype or an existing design for an in situ evaluation. The evaluation board consists of a bottom port microphone soldered to a flexible PCB with color-coded wires attached. The only other component on the board is a 0.1μF supply bypass capacitor.
Please refer to the App Note below “AN-000048 – PDM Digital Output MEMS Microphone Flex Evaluation Board User Guide” for more detailed information.
ICS-40638
The ICS-40638 is an analog MEMS microphone with very high dynamic range and capable of operation up to 105°C. The ICS-40638 includes a MEMS microphone element, an impedance converter, and a differential output amplifier.
Other high-performance specifications include 138 dB SPL acoustic overload point, tight ±1 dB sensitivity tolerance and enhanced immunity to both radiated and conducted RF interference.
The ICS-40638 is available in a small 3.50 mm × 2.65 mm × 0.98 mm bottom port surface-mount package.

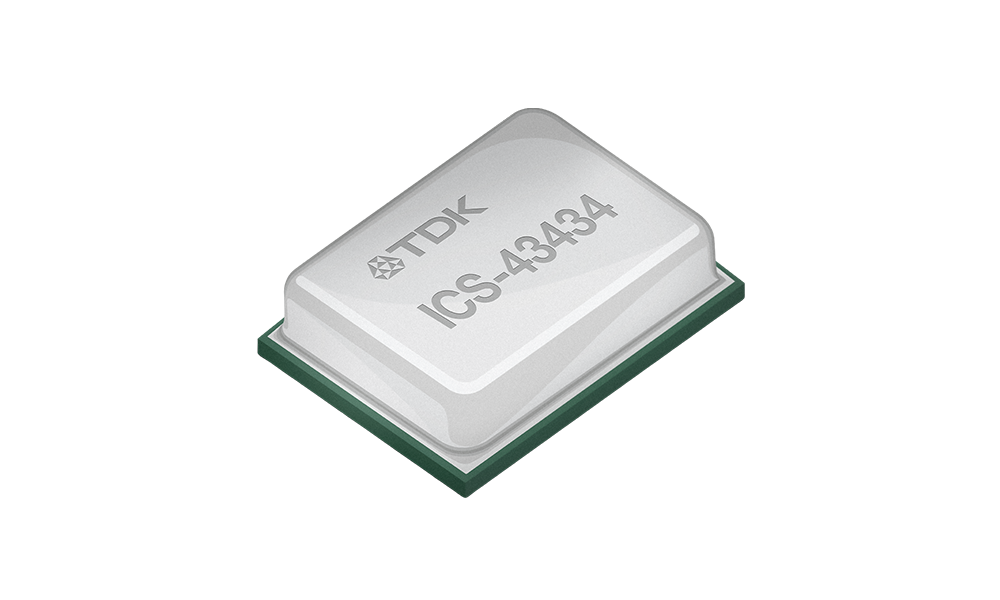

ICS-43434
The ICS-43434 is digital I²S output bottom port microphone. The complete ICS-43434 solution consists of a MEMS sensor, signal conditioning, an analog-to-digital converter, decimation and antialiasing filters, power management, and an industry standard 24-bit I²S interface. The I²S interface allows the ICS-43434 to connect directly to digital processors, such as DSPs and microcontrollers, without the need for an audio codec in the system.
