production

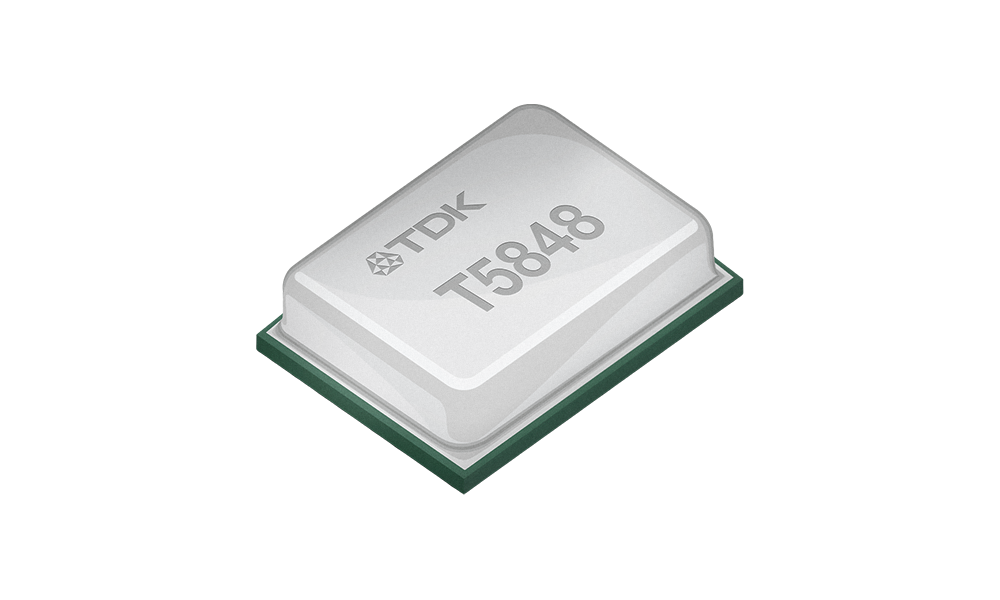

T5848
Bottom Port I²S Digital Output Multi‑Mode Microphone
The T5848 is a low noise, high AOP I²S microphone with a 24‑bit PCM output for direct connection to a wide variety of SoCs. It also features Acoustic Activity Detect (AAD), a new ultra-low power edge processing feature consuming as low as 20 µA.
Features
- Industry leading, first high SNR and high dynamic range I2S output microphone, High SNR and AOP in all operational modes
- Ultra low power consumption in high quality mode and low power mode, 50 – 70% lower than competitors
- I²S output allows direct connection to a wide variety of SoCs, MCUs
- Acoustic Activity Detect w/ programmable thresholds & filters with power consumption as low as 20 uA
Target market & applications
- Smart Speakers
- Headsets
- Voice-Enabled TV Remotes
- Smart TVs & Set Top Boxes
- Smart Watches & Wearables
- Machine Monitoring
Product key details
| Operation |
- |
| Package Size |
0.98 x 3.50 x 2.65 |
| Output Type |
I²S |
| Port Location |
bottom |
| Snr |
- |
| Aop |
133.00 |
| Sensitivity (1 KHz, 94 DB SPL) |
-37 |
| Sensitivity DB FS ±1 DB |
-37.00 |
| Lf Cutoff |
28 |
| Status |
production |
