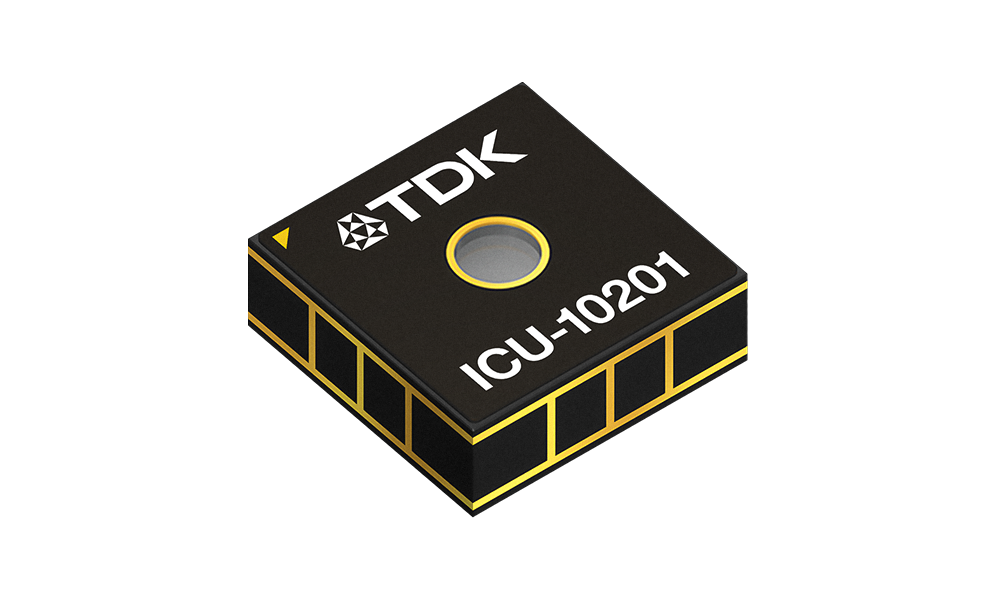

ICU-10201
The ICU-10201 is a high-performance ultrasonic Time-of-Flight sensor that is ideal for measuring the range of objects between 10cm and 1.2m, and offers a customizable field-of-view of up to 180º. It has a sample rate of 250 samples per second at 0.3 meters, and 130 samples per second at 1 meter. It comes in a 3.5 × 3.5 × 1.26 mm LGA package, and includes an integrated DSP for signal processing.
Features
- Operating Range: 10cm to 1.2m
- Integrated DSP for signal processing
- Customizable field of view up to 180°
- Ideal for short-range applications that require low range detection
- Ultra-low power consumption extends battery life
- Integrated high performances DSP runs ultrasonic firmware freeing up system micro-controller resources
- High flexibility – large embedded program/data memory
- Works in any lighting condition and can detect transparent surfaces
- Pitch-catch ranging between wireless nodes
Product Features and Benefits
- Operating Range: 10cm to 1.2m
- Integrated DSP for signal processing
- Customizable field of view up to 180°
- Ideal for short-range applications that require low range detection
- Ultra-low power consumption extends battery life
- Integrated high performances DSP runs ultrasonic firmware freeing up system micro-controller resources
- High flexibility – large embedded program/data memory
- Works in any lighting condition and can detect transparent surfaces
- Pitch-catch ranging between wireless nodes
Product details
Product key details
| Operation | |
Pulse-Echo | - |
| Package Size | |
1.26 x 3.50 x 3.50 | |
| Range | |
0 – 1.2 | - |
| Voltage | |
- | - |
| Current Consumption | |
17.00 | - |
| Interface | |
SPI 13 MHZ | - |
Gaming
Mobile Devices & Computers

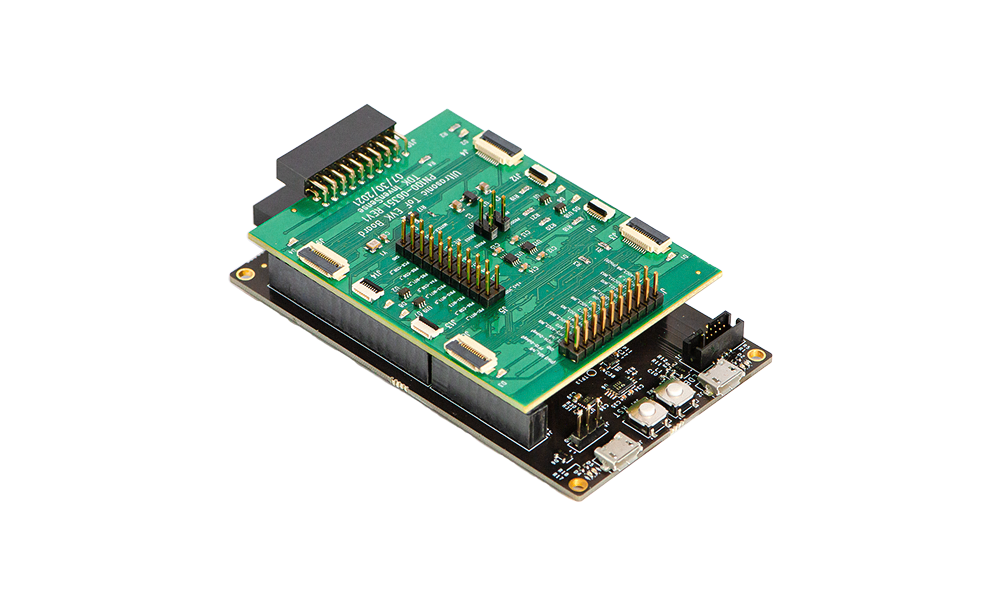

Development hardware
